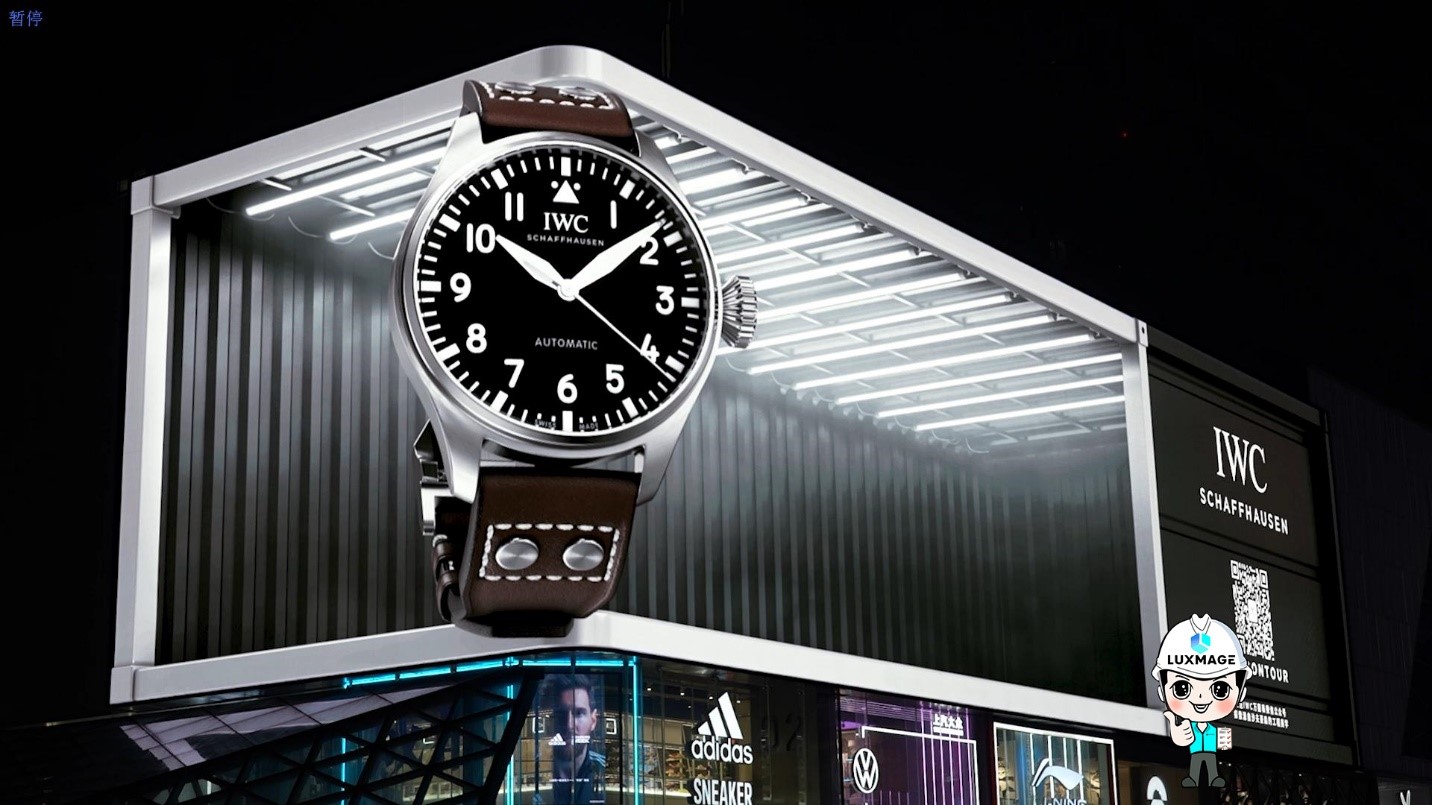

NAKED-EYE 3D Holographic Displays
Step into the future with our 3D Hologram Active LED Video Wall — where real meets virtual. Designed for high-impact storytelling and futuristic environments, this cutting-edge display solution delivers glasses-free, real-time 3D content with ultra-fine pixel clarity and modular flexibility. Whether you’re transforming a retail floor, a boardroom, or a stage, this tech turns heads and drives engagement.
Features
- Creates immersive 3D visuals without glasses using forced perspective and AI-powered content mapping.
- Options from P1.25 to P2.5 mm ensure crisp resolution even at close viewing distances — ideal for showrooms, boardrooms, or museums.
- Supports live 3D content, real-time animations, Unreal/Unity graphics, and holographic video loops.
- Eliminates flicker and motion blur — essential for lifelike 3D depth and smooth playback in any lighting condition.
- Lightweight die-cast aluminum frames allow scalable L-shapes, curves, and corners for creating immersive “infinity box” or “pop-out” 3D effects.
- Easy maintenance with magnetic modules and tool-less access. Reduces downtime during events or retail hours.
- Compatible with HDMI, SDI, DisplayPort, and even live streaming sources. Supports Genlock for perfect sync across large video walls.
- Operate remotely or onsite. Schedule content, adjust brightness, and push real-time hologram effects from a centralized CMS or media server.
- Operates in -10°C to +45°C, and available in IP65 versions for semi-outdoor use like mall atriums or open-air exhibitions.
Applications
- Retail & Shopping Malls
- Corporate Lobbies
- Museums & Exhibits
- Live Events & Concerts
- Trade Shows & Expos
- Gaming & Esports Arenas
- Smart Showrooms
- Education & Research
Technical Specs
| Category | Specification |
|---|---|
| LED Type | SMD (3-in-1 or 4-in-1), Black LED |
| Pixel Pitch | P1.25 mm – P2.5 mm |
| Pixel Configuration | RGB (1R1G1B) |
| Module Size | 320mm × 160mm / 640mm × 480mm |
| Brightness | ≥ 1000 nits (adjustable via software) |
| Viewing Angle | Horizontal: 160° / Vertical: 140° |
| Refresh Rate | ≥ 3840 Hz |
| Gray Scale | 14 – 16 bit |
| Contrast Ratio | ≥ 10,000:1 |
| Frame Rate | 60 – 120 FPS |
| Cabinet Material | Die-cast aluminum / Magnesium alloy |
| Cabinet Size | 640mm × 480mm (customizable) |
| Cabinet Thickness | < 75 mm |
| Cabinet Weight | 7 – 9 kg |
| Cabinet Resolution | Varies based on pixel pitch (e.g., 512×384 @ P1.25 per cabinet) |
| 3D Effect Type | Naked-eye 3D using forced perspective and parallax rendering |
| 3D Content Support | MP4, AVI, OBJ, FBX, Live Stream, Unreal Engine, Unity |
| 3D Enhancements | Optional gesture sensors, AI tracking, holographic mesh, Pepper’s Ghost filters |
| Rendering Engine | Real-time 3D mapping, multi-layer blending |
| Max Power Consumption | ≤ 800W/m² |
| Avg Power Consumption | ≤ 300W/m² |
| Input Voltage | AC 100 – 240V, 50/60 Hz |
| IP Rating | IP30-54 (indoor), IP65 (optional outdoor config) |
| Operating Temperature | -10°C to +45°C |
| Humidity | 10% – 90% RH (non-condensing) |
| Signal Inputs | HDMI, DVI, SDI, 3G-SDI, DisplayPort, Ethernet |
| Signal Transmission | CAT6 (up to 100m), Fiber optic (up to 10km) |
| Synchronization | Genlock supported |
| Mounting Options | Wall-mounted, floor-standing, ceiling-hung |
| Maintenance Access | Front and/or rear (magnetic or screw-based) |
| Calibration | Auto or manual brightness/color calibration |
