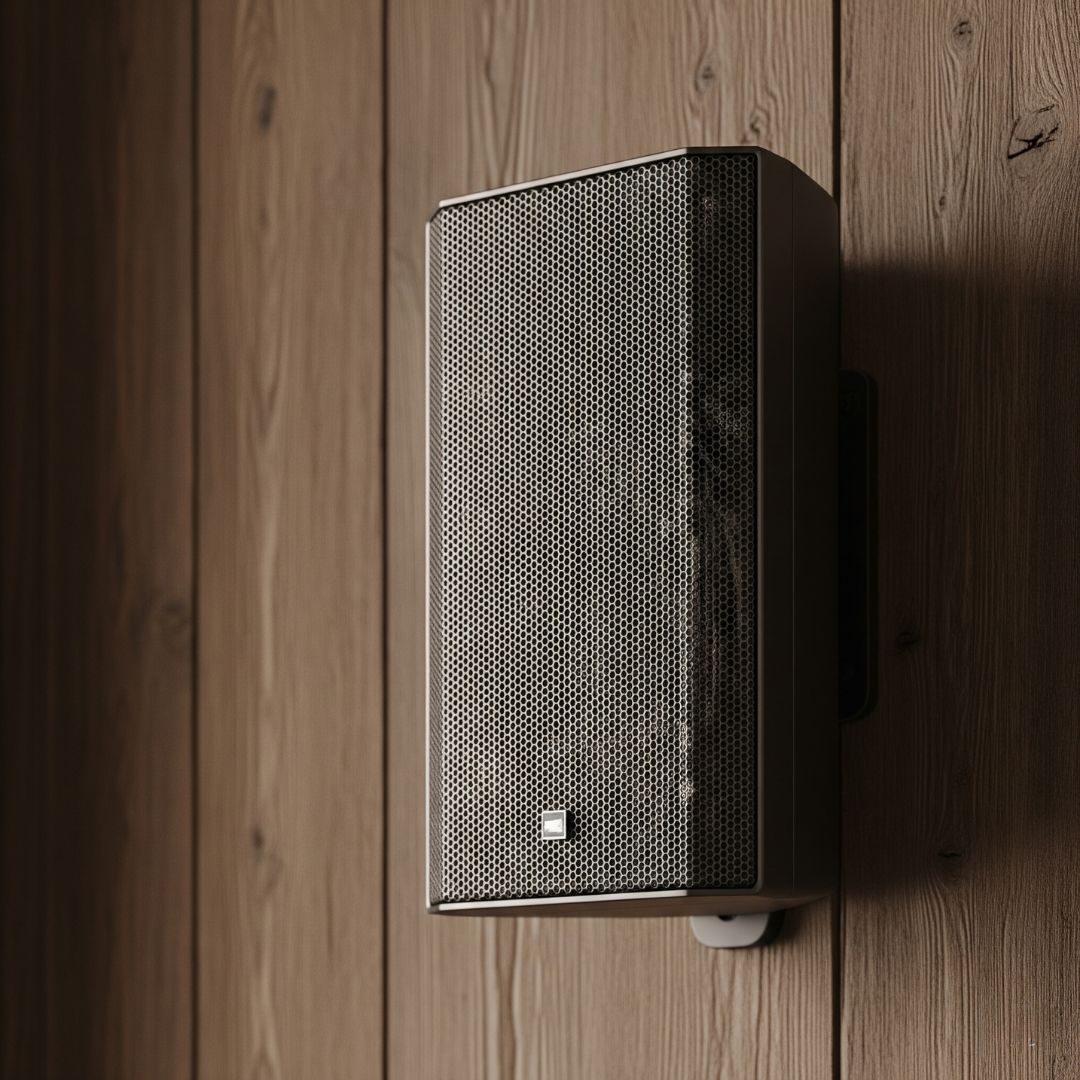

Wall Mount Speakers
The Calytrix Solutions CS-X series Wallmount speakers feature cabinets meticulously constructed from multi-layer, high-density birch plywood. An innovative concave and convex groove process, coupled with high-strength reinforcement nails, ensures exceptional structural integrity and minimizes energy distortion.
Designed for demanding environments, these cabinets are both moisture-proof and dust-proof, guaranteeing stable operation in humid or dusty conditions. They are further equipped with dust-proof and waterproof aviation sockets for reliable connections.
These speakers are perfectly suited for high-end performances, conferences, evening events, and concert systems, offering robust and clear audio in any setting.
Specifications
| CS-X6V | CS-X4V | |
|---|---|---|
| Frequency response (± 3dB) | 80Hz-20kHz | 135Hz-20kHz |
| Unit | 1 X 6.5" + 1 X 1.33" / 36mm + 34mm (VC) | 4 X 3" full/19 mm (VC) |
| Nominal impedance: | 8 Ohm | 8 Ohm |
| Power | 110W (AES), 440W (PEAK) | 80W(AES), 320W(PEAK) |
| Sensitivity | 95dB / w / m | 93dB/w/m |
| Maximum sound pressure level | 118dB | 18dB |
| Coverage angle | H90 ° X V90 ° | H100°X V30° |
| Socket | 2 X NL4 speakon | 2XNL4 speakon |
| Product size (W X D X H): | 215 X 230 X 359mm | 124X155X375mm |
| Net weight | 6.9kg | 4.1kg |
